Truss Frame Catching Snail

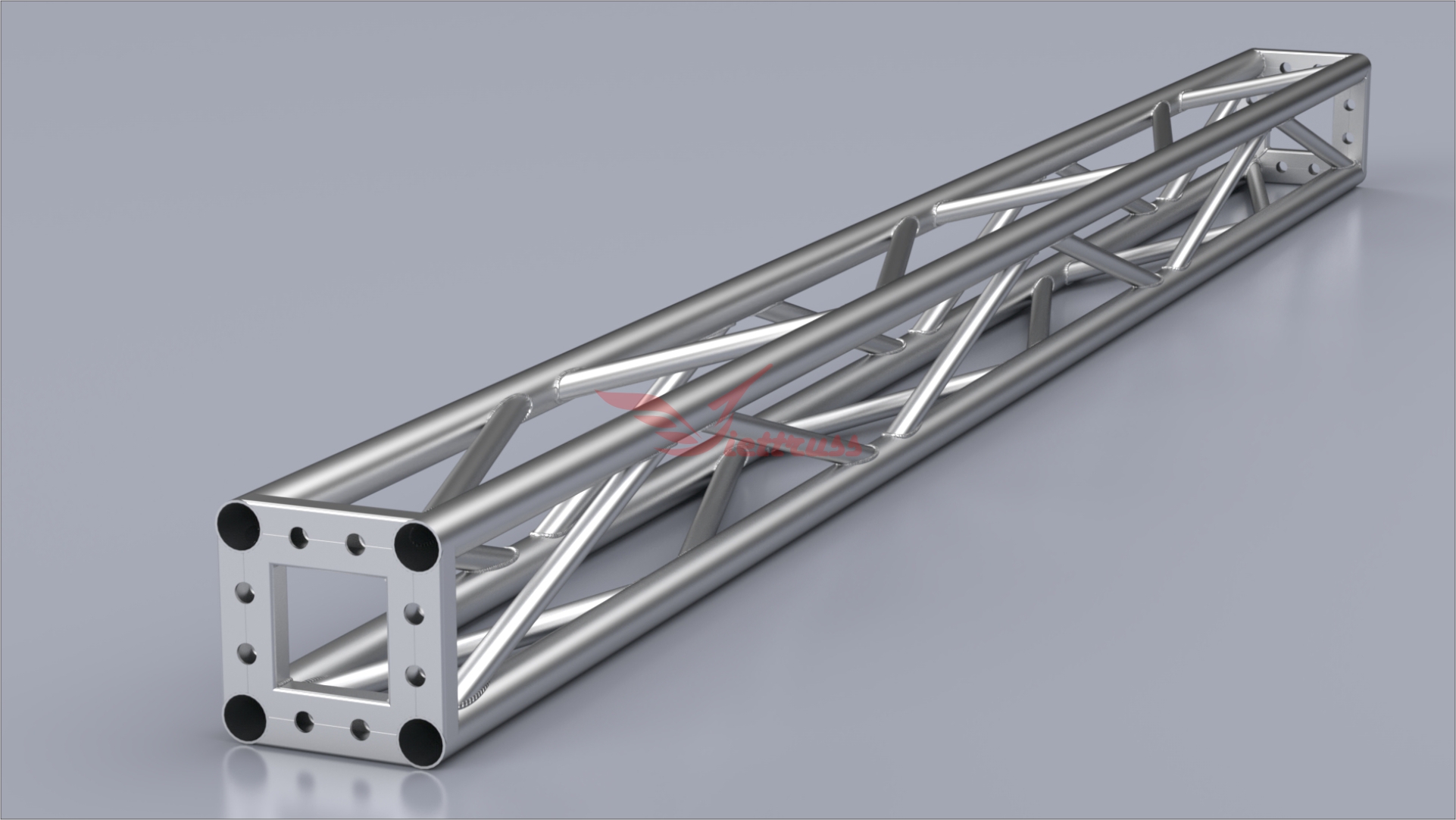

Truss Frame 200x200mm (3m Section) VS2020_3m
Code: VS2020B_3m
Status: Stocking
- Unit Price / Piece
- Model: VS2020B_3m
- Origin: Vietnam
- Brand: Viettruss
- Length: 3000mm
- Width: 200mm
- Depth: 200mm
- Weight: 13.67kg / (Module 3m)
- Connection type: 8 hole screw
- Warranty: 5 Years
Top selling products
✅ TECHNICAL SPECIFICATIONS ALUMINUM TRUSS FRAME VS2020B_3m (3M SECTION) - 8 LOTS OF SHOCKET
| Application | Stage truss, event canvas, truss truss hanging stage lights |
| Alloy material | Aluminum Alloy 6061-T6/6082-T6 . Aluminum Alloy |
| Connection type | Truss catches screws (bolts) 8 holes |
| Module length | 3000mm (3m) or made to order |
| Structure | 4D box 200*200mm or make to order |
| Maximum aperture | Maximum aperture extension 8m (8000mm) straight connection |
| Box form | 4D square box with 4 sides |
| Main aluminum tube | φ43*2.5mm - 43mm diameter tube. Thickness 2.5mm |
| Horizontal pipe | φ25*2mm - 25mm diameter tube. Thickness 2mm |
| Diagonal tube | φ25*3mm - 25mm diameter tube. Thickness 2mm |
| Color | Silver-white natural alloy aluminum color. Or paint on request |
| Weight | 13.67kg / (3m module) |
.jpg "Aluminum alloy truss frame")
✅ DURABILITY TEST SPECIFICATIONS
