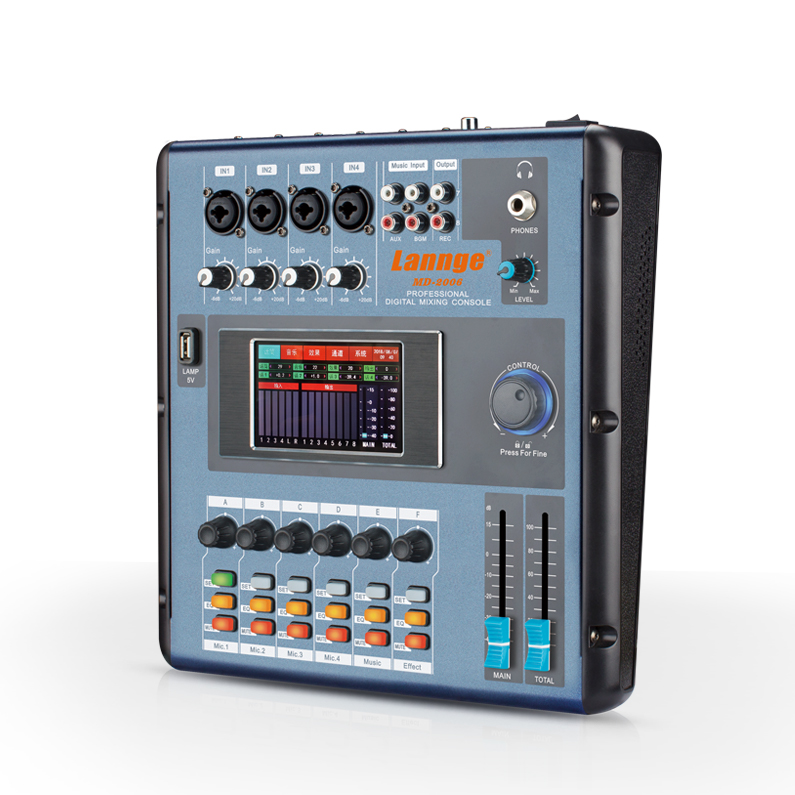

Bộ Xử Lý Tín Hiệu MD-2006

✅ Thông Số Kỹ Thuật Của Bộ Xử Lý Tín Hiệu MD-2006

SNR:MIC:113db, MUSIC:115db

THD:0.005%（20Hz~20KHz)

Frequency response:20Hz~20KHz（ 3dB）

Max input level:MIC: -11.2dbu，MUSIC: +2.73dbu

Max output level:MIC:+14.8dbu，MUSIC: +14.8dbu

Input impedance:MIC:10K Ohm, MUSIC: 22K Ohm

Output impedance:300 Ohm

DSP:32bit

AD/DA:192KHz 24bit

INPUT Voltage:AC 90V-250v/50/60HZ

✅ Chi Tiết Của Bộ Xử Lý Tín Hiệu MD-2006

Equipped with 4 inches and pixel of 800*480 touchable LCD.

6 ways signal input, each way can be independently set 12 bands parameter EQ with high-pass filering, low-pass filtering, dynamic compression and excitation function.

Echo and reverb can be independently set 5 bands parameter EQ with high-pass filtering and low-pass filtering.

8 ways independent output, each way can be independently set 9 bands parameter EQ with high-pass filering, low-pass filtering, dynamic compression and excitation function.

High power floating decimal DSP technology and high resolution 24 bit A/D and D/A convertor to ensure unlimited internal dynamic range.

192KHZ sample frequency with compressing and time delay.

Connect with PC by WIFI/USB port

32 Bit high-performance DSP.

Suitable for stages, pubs, KTV rooms, large conference rooms and etc.
